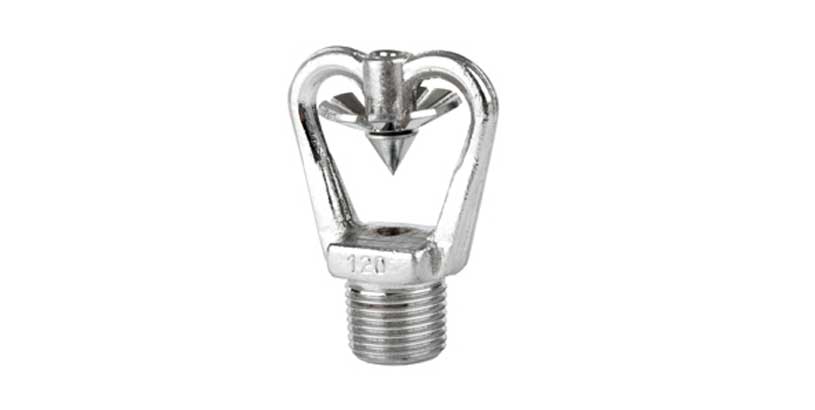

Nozzles Med.Velocity KEW 12

Nozzles Med.Velocity KEW 12

nozzlesmed_velocity

Material of Construction

Valve Body High Tensile Brass Forging
Deflector Brass Sheet

Test Pressure

30 kgs/cm2

Working Pressure

Max - 7 kg/cm2 / 100 PSI
1.4 kg/cm2 / 100 PSI

K Factor = Flow In LPM
 √PR in kgs/cm2

24, 28, 31, 36, 41, 45, 51, 57, 61, 66

Spray Angle

60°, 75°, 80°, 90°, 100°, 110°, 120°, 140°

Net Weight

0.108 kgs

Note

Nozzles are available in any combination of K Factor & Spray Angles.
U.S.K. Factor = metric K factor / 14.2745
