| Products :- |

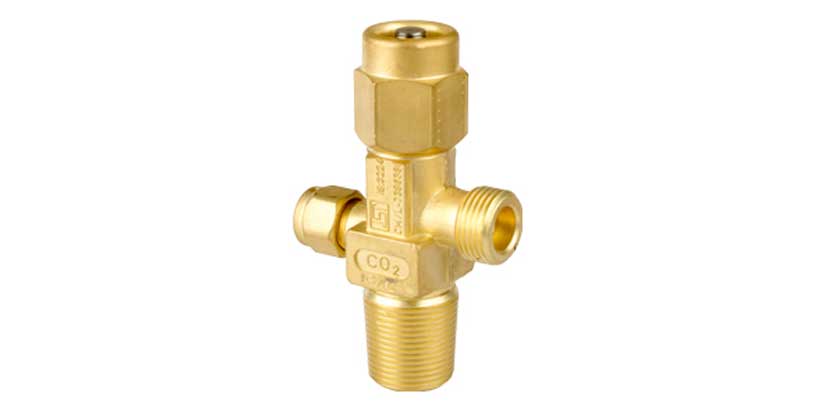

CO2 Key Type Valve KEW - 03 ISI |
|
|
| Material of Construction |
| Valve Body |
High Tensile Brass Forging |
| Spindle |
Brass IS : 319 |
| Handle |
Steel, Close ended spanner |
| Sealing Tip |
Hard Rubber |
|
| Test Pressure |
: |
155 kg/cm2 |
| Working Pressure |
: |
105 kg/cm2 |
| Outlet Threads |
: |
21.8 mm Dia x 1.814 P. (M)
R .H. With Worth Profile
Outlet No. - 7
To IS : 3224-2002 |
| Net Weight |
: |
0.565 kgs |
| Safety Device |
: |
Fitted with safety disc.
With brust pressure 200-220 kg/cm2 |
|
| |
|
